- Features
- Highlights
- Quality control
- Warranty
Important quality control
* Baosteel from fortune global 500
* Panasonic robotic ensure
* 360° full smooth welding
* Environmental plastic can be sterilized in 100°C, tensile upto 30MPa
* 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact

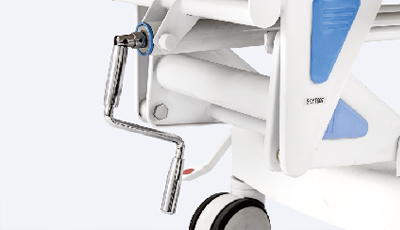

* 2 function: backrest by qualified airspring, height adjustment by solid crank system

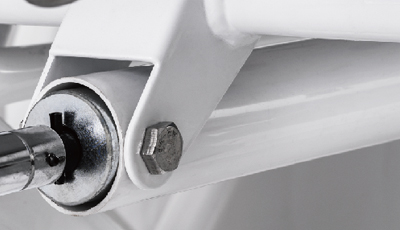

* We use metal dust protection for crank system, more endurable than plastic cover

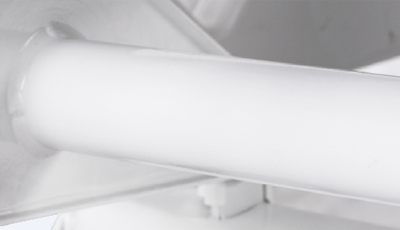

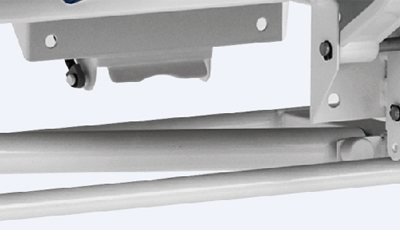

* We use robust tube in weight bearing structure

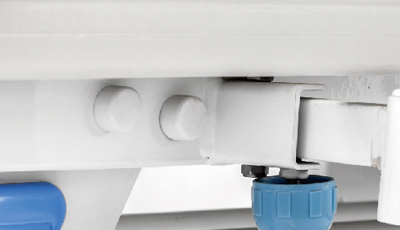

* Cover all metal srews with rubber cap, protect screws form possible corrosion
* 4 hooks for IV pole

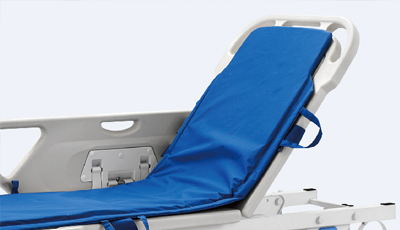

* Back lift can be up to 80 degrees, make patient more conformtable when needed

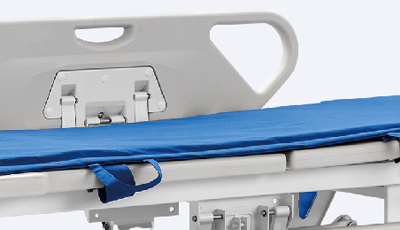

* With strips to provent patient from possible slide off the stretcher

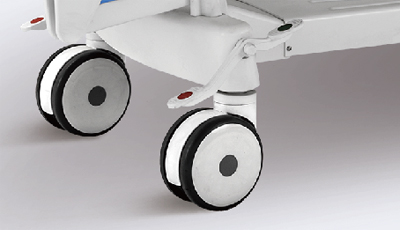

* Four double side casters of 6 inch diameter, simultaneously lockable by the step pedal at both sides.

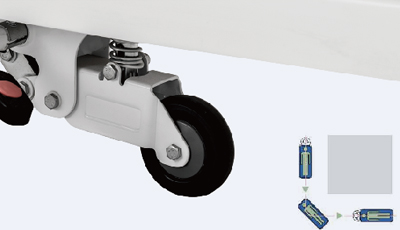

* With direction wheel, which help nurse staff to push trolley to go straight easily by one person.
* TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts
* Pass dynamic test: one caster bearing 120kg run 30KM and pass obstacles 500 times

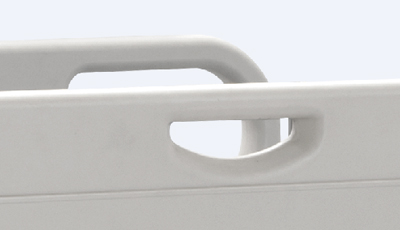

* Stainless steel handle, more durable

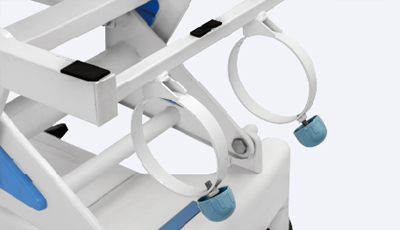

* Adjustable vertical oxygen bottle, load capacity: 15kg
Technical parameters
Technical configuration
* Baosteel from fortune global 500
* Panasonic robotic ensure
* 360° full smooth welding
* Environmental plastic can be sterilized in 100°C, tensile upto 30MPa
* 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact
* 2 function: backrest by qualified airspring, height adjustment by solid crank system
* We use metal dust protection for crank system, more endurable than plastic cover
* We use robust tube in weight bearing structure
* Cover all metal srews with rubber cap, protect screws form possible corrosion
* 4 hooks for IV pole
* Back lift can be up to 80 degrees, make patient more conformtable when needed
* With strips to provent patient from possible slide off the stretcher
* Four double side casters of 6 inch diameter, simultaneously lockable by the step pedal at both sides.
* With direction wheel, which help nurse staff to push trolley to go straight easily by one person.
* TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts
* Pass dynamic test: one caster bearing 120kg run 30KM and pass obstacles 500 times
* Stainless steel handle, more durable
* Adjustable vertical oxygen bottle, load capacity: 15kg
Technical parameters
|
External size (LxW) |
1930x640 mm |
|
Table height adjustment |
540-840 mm |
|
Back plate adjustment |
0-75° (±10°) |
Technical configuration
|
Crank system |
1 set |
|
Back plate air spring |
1 set |
|
ABS side guardrail |
1 set |
|
6" castors with central locking system |
4 pcs |
|
Directional wheel |
1 pc |
|
Central locking pedal |
2 pcs |
|
Directional pedal |
2 pcs |
|
IV pole |
1 set |
|
IV pole prevision |
2 pcs |
|
Oxygen bottle holder |
1 pc |
|
Transfer mattress |
1 pc |
